TRI-CITY ELECTRIC CO.

MANUFACTURER OF ALL KIND OF ELECTRICAL PANELS, SERVO VOLTAGE STABILIZER AND DISTRIBUTION TRANSFORMER

C.P.R.I. APPROVED COMPANY UP TO 70KA

let’s enter to our world of innovation

BHARDWAJ ENGINEERS

About Us

Founded in 2010, TRI-CITY is a well known group of companies which specialize in the design, engineering & manufacturing of varied energy-efficient equipment's. TRI-CITY ELECTRIC CO. is the leading manufacturer &supplier of automatic voltage controllers/Servo Voltage stabilizers and Distribution Transformer and Electrical Panels. All infrastructure related to manufacturing these is available in house. A state of We are proud to inform you that we are an ISO Certified Company with very good installation base in India. We believe in Quality Oriented Product & with state of the art technology. We have established a renowned name as BHARDWAJ ENGINEERS and TRI-CITY ELECTRIC CO. that has made a major breakthrough in the field of Engineering and Electricity Saving. Our high quality products and efficient services to our valued customers have enabled us with ample success. We at BHARDWAJ ENGINEERS and TRI-CITY ELECTRIC CO. believe that, sale is not an end of a relationship, but just the beginning of our services. With this belief we destined to bring in products, which are customer oriented. We have the ability to offer you the best value products that meet or exceed expectations all at competitive prices.

Scan or Click for Ecard

Produces And Services

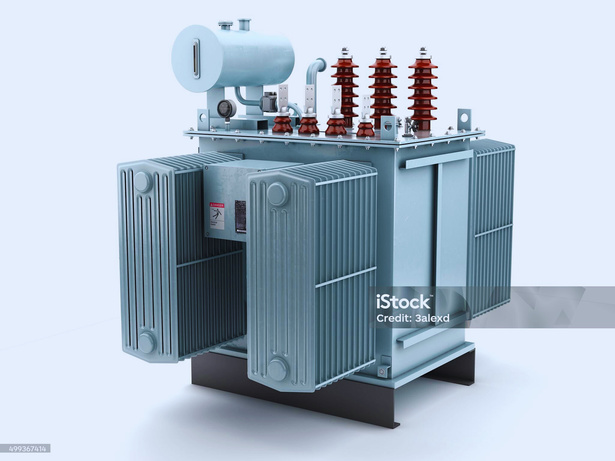

Distribution Transformers

Base on tried and tested technologies
Meeting the latest I.E.C technical specification
Large overload capability depending on the ambient temperature
Large over voltage capability on generator side to withstand the overvoltage coming for load rejections
Satisfying specific customer requests
Equipments for indoor and outdoor usage
Base on tried and tested technologies
Meeting the latest I.E.C technical specification
Large overload capability depending on the ambient temperature
Large over voltage capability on generator side to withstand the overvoltage coming for load rejections

Electrical Panels

Fully type tested assemblies as per IEC 60439-1
Rated upto 6000A
Rated operating voltage upto 690V
Manufactured to Form 2, Form 3 & Form 4 construction
Type tested for 70kA/1 sec, 50kA/3 sec
Designed for both withdrawable & fixed versions
Ample cabling space for easy connections
Top and bottom cable entry.
Panels for front or rear access to suit application
Index of protection : IP 31 & IP 54
Floor mounting
Maximum safety & reliability
Modular system with Customized design to meet end user requirements.

Servo Voltage Stabilizers

Up to 80% reduction in the failure rate of electrical equipment
Energy-saving up to 10% (up to 30% on lighting load)
Reduction in MDI
Improvement in Power factor
Uniform quality of end products
Improves Productivity of the plant
Depreciation @ 40% as per Income Tax Act (In India) being an energy-saving device.
Improve the duration/life period of your equipment.

OUR PRODUCES IN DETAIL

Standards

Our transformers are designed and tested as perIS:2026, BS-171, IEC-76 & IEC - 726.

Vector Group

Transformers will be connected as per vector group reference Dyn11. Other vector groups can be offered as per specific requirements.

Terminal Arrangement

H. V. - Bare Bushings or Cable Box, L. V. - Bare Bushings Or Cable Box. Disconnecting chambers

can also be provided on both HV and LV Cable boxes.

Temperature Rise

Our transformers are designed for a maximum temperature rise of 40 / 50 degree C of oil/Winding. Lower temperature rise can be offered On request. Pre-compressed board PARMALI board and JAPANEESE insulation paper of best quality is used.

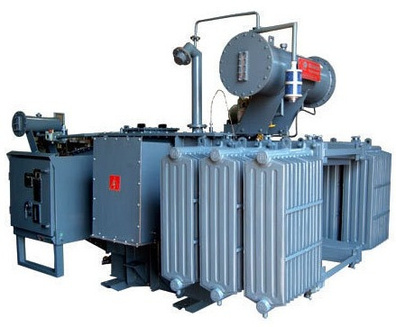

Distribution & Power Transformers

Power & Distribution Transformers from 6.3 KVA to 3000 KVA up to 33KV

BHARDWAJ ENGINEERS

CORE

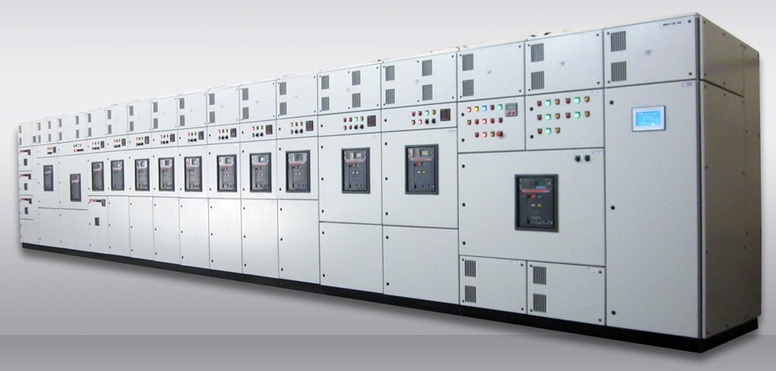

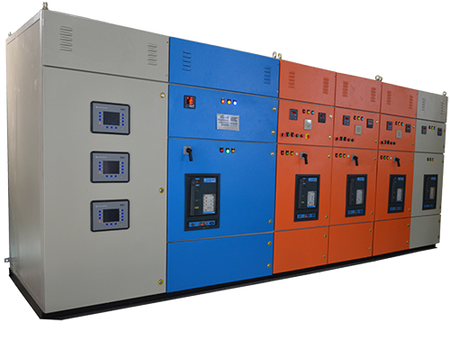

Power Control Centre Panel

The core is constructed from low loss, cold rolled, grain oriented, annealed laminations of electricals heet conforming to the latest international standards. Special frame is built in-house for clamping the core to reduce the magnetic noise as well as making the whole structure rigid and robust.

Electrical Control Panels, PCCs, MCCs, AMF Panels

PF control Panels, DBS, Bus Ducts and Undertake Project's Execution on Turn Key Basis with Latest Techniques.

WINDING

Coils are wound with electrolytic high conductivity paper covered or synthetic enamelled copper conductors. Cooling ducts are provided to keep the hot spot temperature as low as possible. Coils are dried in electric ovens. Rigid connection support and col clamping is provided to ensure high short circuit strength.

The panel boards will be fabricated with CRCA sheet steel of thickness not less than of thickness not less than 2.0 mm and will be folder and braced as necessary to provide rigid for all components. The doors and covers will be constructed from CRCA sheet steel of thickness 1.6 mm. Joint of any kind in sheet metal will be elect. Welded and all welding slag ground off and welding pit wiped smooth plumber metal.

OlL

Oil is tested for resistivity, dielectric and acidic characteristic conforming to IS-335. Before topping up oil is filtered thoroughly.

MCC PANEL

VFD PANEL

PLC/SCADA BASED PANEL

TANKS

All panels and covers will be properly fitted and square with the frame. The holes in the panel will be correctly positioned.

Fixing screws will enter holes tapped into an adequate thickness of metal or provided with hank nuts. Sel-threading screws will not be used in the construction of the switchboards.

The tanks are made of M.S steel plates/ sheets with adequate bracing&stiffness. Tanks are pressure tested to withstand any type of inside or outside pressure. All the external surfaces are given a primary coat of zinc chromate, red oxide an two finishing coats of grey paint. The inner Surfaces are given a coat of heart and oil resisting paint.

Also Deals in

QUALITY CONTROL AND ROUTINE TESTS

All our transformers undergo rigorous quality control checks and are routine tested as per IS in our fully equipped laboratory. Any specific test required by the customer can also be arranged.

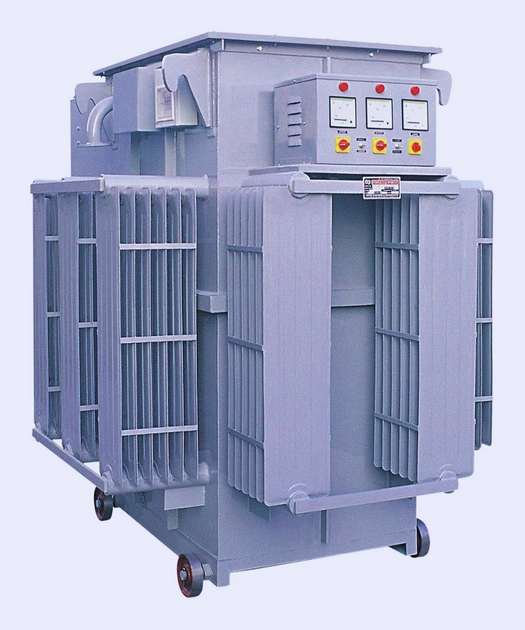

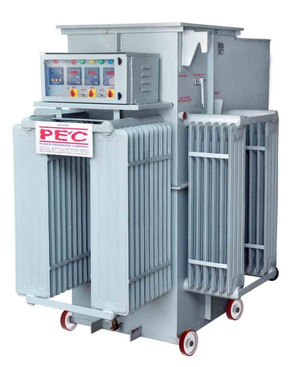

Automatic voltage controller / Servo controlled Voltage Stabilizer
